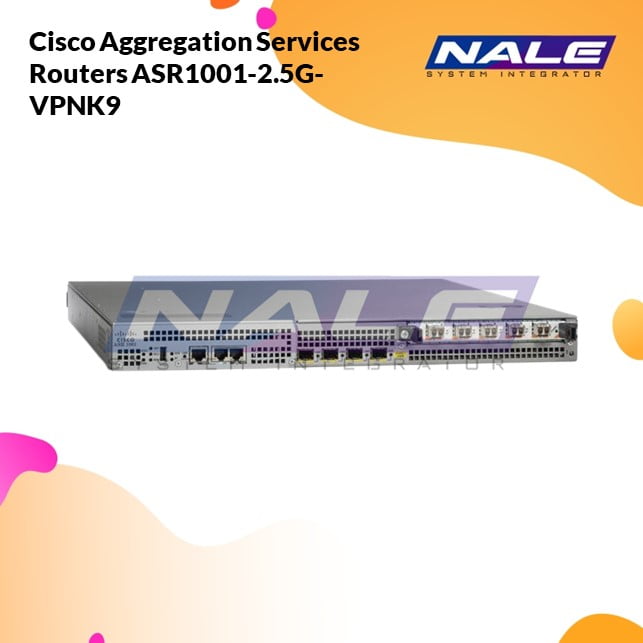

Cisco Aggregation Services Routers ASR1001-2.5G-VPNK9
Rp631.867.500
Deskripsi
ASR1001-2.5G-VPNK9 Specification |
|
| General | |
| Device Type | Router – with Cisco ASR 1000 Series Embedded Services Processor, 2.5Gbps |
| Enclosure Type | Rack-mountable – modular – 1U |
| Connectivity Technology | Wired |
| Performance | Bandwidth: 2.5 Gbps ¦ VPN throughput (IPSec): 1.8 Gbps |
| Network / Transport Protocol | IPSec |
| Encryption Algorithm | Triple DES, AES |
| Features | Firewall protection, NAT support, VPN support, Intrusion Prevention System (IPS), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1 |
| RAM | 4 GB (installed) / 16 GB (max) |
| Interfaces | Management: 1 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ USB: 1 x ¦ 4 x SFP (mini-GBIC) |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Expansion / Connectivity | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| OS Provided | Cisco IOS Advanced Enterprise Services |
| Width | 17.3 in |
| Depth | 18.5 in |
| Height | 1.7 in |
| Weight | 23.37 lbs |
DataSheet Cisco Router ASR 1000 Series.pdf
